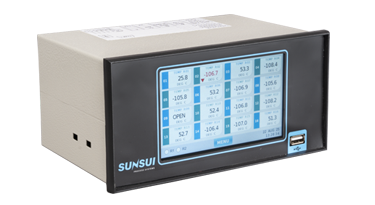

We are Manufacturer, Supplier, Exporter of Touch Screen Data Loggers SMARTLOG-08/16 and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS
SMARTLOG-08/16 system is used for monitoring the data of any universal input. The data logger will log the data with user settable interval and the data will be download by connecting the pen drive or through the PC software.
This system is used for monitoring the data of any universal input. The data logger will log the data with user settable interval and the data will be download by connecting the pen drive or through the PC software

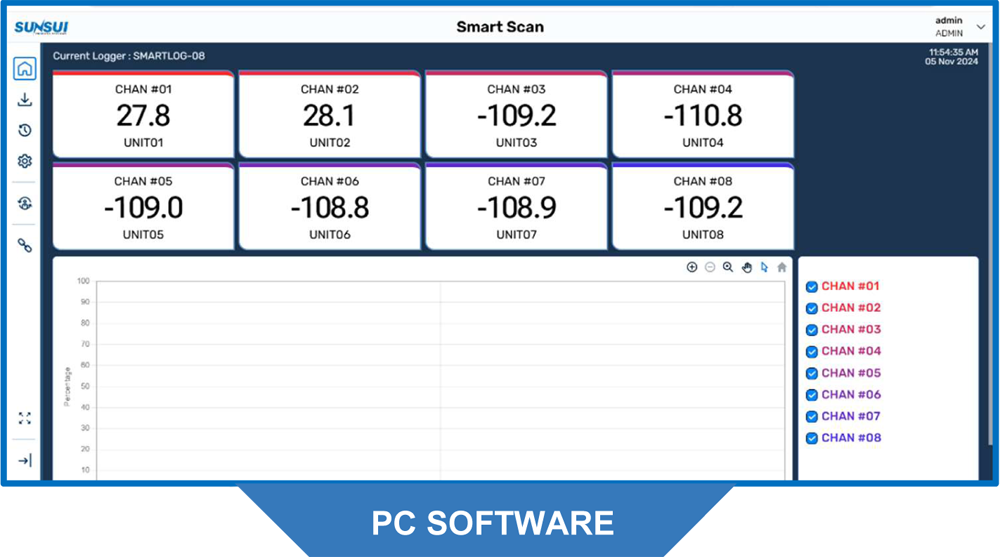

Standard Software
- Support single or multiple loggers in single software.
- Network based software, user will open the software on any PC within the network.
- Online view of current readings as well as live graph plotting on dashboard.
- Auto or manual data downloading from logger
- Channel, Calibration, alarm and graph settings to logger from software

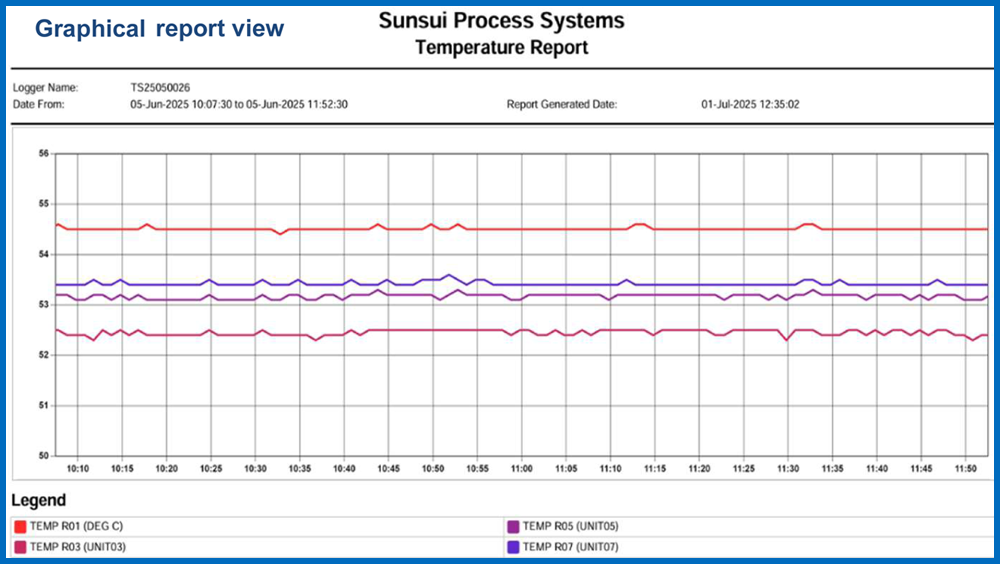

- Report generating in PDF, WORD, Excel and graph.
- Backup and restore data facility.
PC SOFTWARE SPECIFICATION
- Windows 10 and above (64Bit)
- HDD - 500GB
- RAM - Min 8 GB
| Technical Specification | Description |
| Input | RTD : PT100, 3 wire. Thermocouple : J,K,R,S,T,N. DC mA : 0-20mA , 4-20mA DC mV : 0-250mV, 0-500mV DC V : 0-1V, 0-2V, 0-5V, 0-10V |
| Display | 5.1 Inch Color Graphical Display with touch Screen for user interaction. |
| Data Storage | 60,000 samples |
| Log in interval | User Selectable - 1/5/10/15/30Sec, 1/5/10/15/30/60min. |
| Resolution | RTD (PT100) : XXX.X Thermocouple : XXX.X DC mV/V/mA : X.XXX / XX.XX / XXX.X / XXXX |
| USB Port | USB 2.0 Type A, For easy data retrieval in CSV format. |
| Alarm Type | User settable Alarm point for individual channels. Alarm indication available on display screen. Optional Relay output available. Alarm Types : Low, High, High-Low. |
| Relay | 2 Nos NO/POLE alarm relay (Grouping) Relay 1 : Common for all channels or user select the channels. Relay 2 : Common for all channels or user select the channels. |
| Power Supply | 12VDC (230VAC to 12VDC adapter can be provided) |
| Cutout Size | 92 mm (H) X 187mm (W) X 177mm (D) Standard Panel mounting |
| Operating Temperature | 10 to 50°C and 10 to 90% RH. |
Key Features
- 5.1 Touch screen with broad font reading view.
- Pen Drive port for easy data retrieval in Excel format.
- Individual channel name and unit editing.
- Two Way software communication.
- Available with RS232, RS485, Ethernet and Wireless RF communication.
- 21CFR part 11 Complied software and Normal software available.
21 CFR Compliant Software
Standard software features included with below additional features.- Access controls to prevent unauthorized individuals from accessing electronic records
- Computer-generated audit trails to track changes
- Reports include the statistical data like minimum, maximum, average, MKT and Cumulative MKT.
- Every report generated with electronic signatures
- Applying the software privileges to every user by administrator
- Email alerts for Alarms and logger communication failure
- Automatic downloading of data from logger to software as well as automatic report generation in PDF format at specific time interval.
- Automatic password expiration at given expiration interval.
- Generating reports with configurable headers settings.
