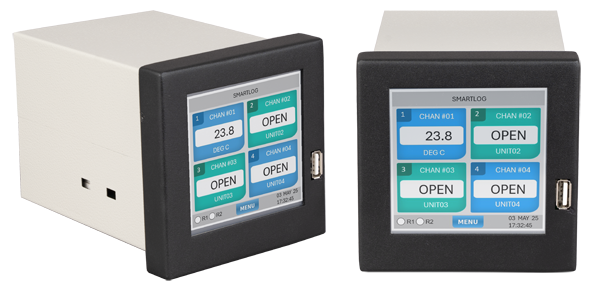

We are Manufacturer, Supplier, Exporter of Touch Screen Data Loggers SMARTLOG-04 and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS
SMARTLOG-04 system is used for monitoring the data of any universal input. The data logger will log the data with user settable interval and the data will be download by connecting the pen drive or through the PC software.
This system is used for monitoring the data of any universal input. The data logger will log the data with user settable interval and the data will be download by connecting the pen drive or through the PC software.
| SPECIFICATION | Description |
| Channel Input | 04 Channels (RTD PT100 / TC-J,K,R,S / mA-4-20 & 0-20 / VDC- 0-1V,0-2V,0-5V) |
| Display | 3.5 Color Graphical Display with Capacitive touch screen. |
| Data Storage | 65000 Samples per channel. |
| Log in interval | 1 sec / 5 sec , 10 Sec, 15 sec, 30 Sec, 1 min / 5 Min / 10 Min / 15 min / 30 min / 60 min. |
| USB Port | For easy data retrieval in pen drive. |
| Communication | RS232 and RS485. Ethernet: On request (Optional). |
| Power Supply | 12 VDC Adapter. |
| Alarm Type | High / Low / High-Low. |
| Relay | 2 NO/NC relay (Grouping). |
| Dimensions | 92mm X 92mm X 150 mm. |
| Operating Conditions | 10 C to +50 °C 10 % to 95 % Rh. |
| Optional | 2G/4G GSM modem for sending SMS. |
Key Features
- 3.5 Touch screen with broad font reading view.
- Pen Drive port for easy data retrieval in Excel format.
- Individual channel name and unit editing.
- Two Way software communication.
- Available with RS232, RS485, Ethernet and Wireless RF communication.
