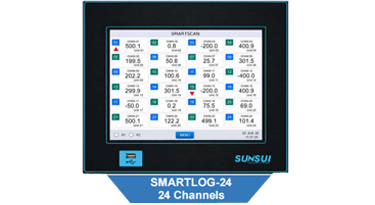

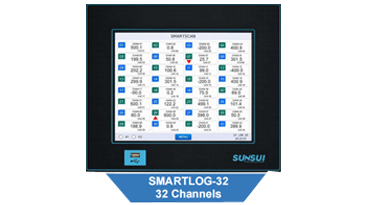

We are Manufacturer, Supplier, Exporter of Touch Screen Data Loggers SMARTLOG-24/32 Channel and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS
This system is used for monitoring the data of any universal input. The data logger will log the data with user settable interval and the data will be download by connecting the pen drive or through the PC software
Key Features
- 10.4-inch Touch screen with broad font reading view.
- Pen Drive port for easy data retrieval in Excel format
- Individual channel name and unit editing.
- Two Way software communication
- Available with RS232, RS485, Ethernet and Wireless RF communication
- 21CFR part 11 Complied software and Normal software available.
| Technical Specification | Description |
| Input | RTD : PT100, 3 wire. Thermocouple : J,K,R,S,T,N. DC mA : 0-20mA , 4-20mA DC mV : 0-250mV, 0-500mV DC V : 0-1V, 0-2V, 0-5V, 0-10V |
| Display | 10.4" Touch Screen HMI display |
| Data Storage | 1 Lakh Samples |
| Log In Interval | User Selectable - 1/5/10/15/30Sec, 1/5/10/15/30/60min |
| Resolution | RTD (PT100) : XXX.X Thermocouple: XXX.X DC mV/V/mA : X.XXX / XX.XX / XXX.X / XXXX |
| USB Port | USB 2.0 Type A For easy data retrieval in .CSV format. |
| Alarm Type | User settable Alarm point for individual channels. Alarm indication available on display screen. Optional Relay output available. Alarm Types: Low, High, High-Low. |
| Relay | 2 Nos NO/POLE alarm relay (Grouping) Relay 1: Common for all channels or user select the channels. Relay 2: Common for all channels or user select the channels. |
| Power Supply | 12VDC (230VAC to 12VDC adapter can be provided) |
| Operating Temperature | 10 to 50°C and 10 to 90% RH. |
