We are Manufacturer, Supplier, Exporter of Portable Data Loggers - SUNLOG-2U-USB and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS

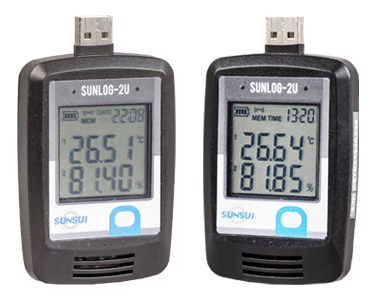

The Data Logger, is a smart device to monitor and Log ambient temperature and Humidity. Multiple model options are shown below which allow Temperature or Temperature and Humidity as built-in sensors. The device is compact in size and easy to install. The data is logged with realtime timestamp with pre-defined intervals. The device also records and indicate the Alarm events with crossovers time stamps The Logged data is downloadable in PC software for reports.
| TECHNICAL SPECIFICATION | |||
| Model- SUNLOG-2U | -Ti | -THi | |
|---|---|---|---|
| Measure. Channel | 1Ch | 2Ch | |
| Sensor | Built-in Digital | Built-in Digital | |
| Measure. Range | -20 to 70°C | Temp: 0 to 60°C & Humidity: 0-100%Rh | |
| Measure. Accuracy | ±0.3°C | ±0.2°C & ±2%Rh (at 25°C,50%RH) | |
| Display Resolution | 0.01 | 0.01 | |
| Measure. Interval | 5s | 5s | |
| Warm-up (Stable 15min) Response |
< 2min < 10s |
< 2min < 10s |
|
| Logging Capacity | 42000 readings | 30000 readings | |
| Recording Interval and Mode |
Select from 15 choices: 1,5,10,30sec. or 1,5,15,30 min. or 1,2,6,12,24 Hours Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) |
||
| Log Start/Stop set |
Start Delay: Default 0mins & Set by software; Start Mode: By button/software; Stop Mode: By button/Memory full/software |
||
| LED Indicators | Flashing RED LED indicates the alarming condition. | ||
| Display | Liquid Crystal Display size 28(W) x 32(H) mm without backlit | ||
| Comm. Interface | PC USB Port 2.0 | ||
| Data Download | To PC Software with USB Port | ||
| Power | CR2450 Lithium Battery Re-placeable | ||
| Battery Life | CR2450- Approx. 3 months; Life also depends on logging interval setting | ||
| Size and material | Size: 76 mm x 52 mm x 16.5 mm (H x W x D) Housing: ventilated ABS Enclosure |
||
| Operating Environment | Temperature: -20°C to +60°C; Humidity: 0-100% RH | ||
