We are Manufacturer, Supplier, Exporter of Portable Data Loggers - SUNLOG-2B-Bluetooth and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS
The SUNLOG-2B Series includes data loggers designed to measure and record temperature & humidity. Variety of data collection tools are available to enable wireless collection of recorded data. USB port on request.

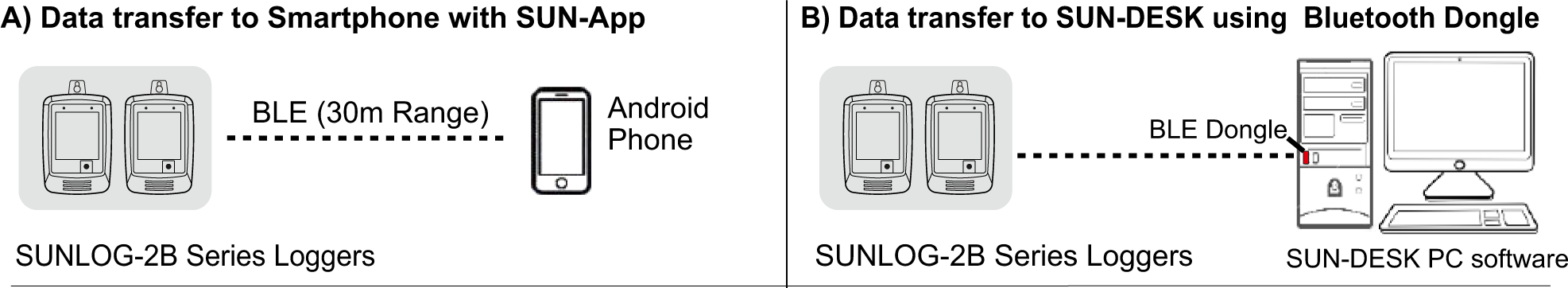

Collect Data via Wireless Communication with the Mobile App / PC App
The datalogger have multiple type of data downloading options as described below. By connecting the device with SUN-App the policy can be fixed. For the report generation there are three types of software available. SUN-App is a Android software which allows to download data from single devices and report can be generated singularly. Bluetooth Logger is PC based software which allows to download data from devices one by one and in this bulk report is possible. Bluetooth Logger app is ideal solution for Validation Mapping type of applications
| Model No. | Measurement Items | Measurement Range | Notes |
| SUNLOG-2B | Temperature / Humidity 1ch Each | - 20 °C to 55 °C10 °C to 95% RH | Measure Temperature and Humidity |

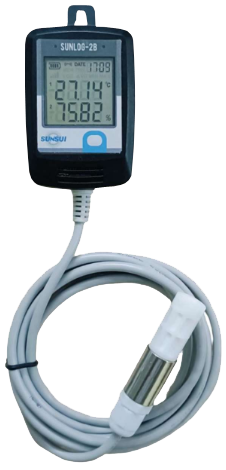

| SUNLOG-2B-EXT | Temperature / Humidity 1ch Each | -20 °C to 55 °C 10% to 95% RH | Measure Temperature and Humidity with extended 1.5Mtr Cable |
| TECHNICAL SPECIFICATION | |||
| SUNLOG-2B | -THI | ||
|---|---|---|---|
| Measurement Channels | Humidity 1ch | Humidity 1ch | |
| Sensor | Digital Sensor | Digital Capacitance | |
| Measurement Units | °C, °F | %RH | |
| Measurement Range | -20°C to 55°C | 10 to 95 %RH | |
| Accuracy | Avg. ±0.2 °C | ±3 %RH at 25°C, 50%RH |
|
| Measurement Resolution | 0.01°C | 0.1 %RH | |
| Responsiveness | Response Time (90%): Approx. 20 SEC |
||
| Logging Capacity | 30,800 data sets (One data set consists of readings for multiple channels.) |
||
| Recording Interval | Select from 15 choices: 1, 5, 10, 30 sec. or 1, 5, 15, 30 min, 1Hr, 2Hr, 6Hr, 12Hr, 24Hr | ||
| Recording Mode (*2) | Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) | ||
| LED Indicators | Flashing RED LED indicates alarming condition. Flashing Green LED indicates Logging is ON. | ||
| Communication Interfaces | SUN-APP / SUN-Desk software <Between Logger Unit(s)> - smartphone / PC / Data collector > Bluetooth 5.0 (BLE) Freq 2.4Ghz, Range: 30m unobstructed; | ||
| Data Download | The recorded data is directly uploaded to software | ||
| Log Start/Stop setting | Start Delay: Settable by software; Start Mode: By button / software; Stop Mode: By button / Memory full /software | ||
| Power | Lithium Battery: 1/2AA Lithium Replaceable | ||
| Battery Life (*2) | Approx. 6 months | ||
| Dimensions | H 75mm x W 52 mm x D 28 mm | ||
| Weight | Approx. 25 g | ||
| Operating Environment | -40 to 80°C -30 to 80°C during wireless communication |
||
| Waterproof Capacity | Ip64: Splash proof (rated for use in daily life) (*3) | ||
- *1: When continually used in environments with temperatures above 60°C, accuracy of humidity measurements will decrease over time. Also, humidity cannot be measured at temperatures below -20°C.
- *2: The battery life is based on the following usage conditions: Recording at 5 minutes (or longer) intervals, Current Readings Transmission every 5 minutes, and Recorded Data Transmission once a day. Battery life also varies depending on ambient temperature, radio environment, frequency of communication etc.
- *3: This is the waterproof capacity of the data logger with the sensor connected. Note that the temperature-humidity sensor is not water resistant
Measurement parameters
- Temperature, Humidity
Data Collection
- Wireless Communication with PC / Cloud
- Mobile App / Data Collectors / Base Station
