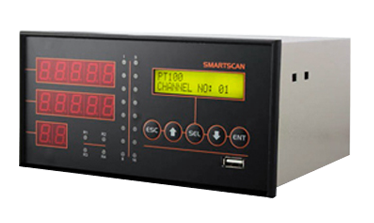

We are Manufacturer, Supplier, Exporter of Digital Display Data Loggers Smart Scan 08 - 16 and our set up is situated in Pune, Maharashtra, India.
ABOUT PRODUCTS
SMARTSCAN is entry level Universal Input data monitoring and logging system. This product is Ideal for all the industries where multiple process parameters are to be monitored and tracked. Product comes with Bright LED display for clear visibility of Parameter value and Set point value. In addition 16 Character X 2 Line alpha numeric display with backlight is provided for easy man machine interface. To better suite you need product come with two different Size Orientation Vertical or Horizontal. Selection is also available between1, 4, 8 or 16 channels based on the needs. Serial output of over RS232 or RS 485 allows you to collect data on your desktop using out data logging software or communication can be established with PLC.
| Technical SPECIFICATIONs | Description |
|---|---|
| Intuitive Display | Bright red seven segment LED display for Parameter value (5 Digits), Set point Value (5 Digits) and channel number (2 Digits) and 16 character x 2 Line alphanumeric LCD display for indicating parameter units, alarms and easy system settings along with continuous display of Date & Time |
| No. of Channels | 4 / 8 / 16 Channel Universal Input |
| RTD Input | PT100 / PT100 |
| Thermocouple Input | K, J, R, S type |
| Input | 4 - 20 mA / 0 - 20 mA |
| Input | 0 - 2000 mVolt DC Input |
| Voltage Input | 0 - 5 VDC Input / 0 - 10 VDC Input / 0 - 20 VDC input |
| Data Storage | 4 MB / 8 MB internal Data Storage capacity suitable |
| for storing around | 60,000 samples per channel |
| Logging Interval | 1 Sec. to 24 Hour (User Selectable) |
| Logging Types | Continuous / Value Triggered / Time based |
| Real Time | Internal Real Time Clock with Battery Back Up |
| USB (optional) | USB Host Port for USB sticks |
| Relay / Alarm | 4 potential free relays with grouping facility |
| Modbus RTU | Optional RS485 MODBUS - RTU output for connecting multiple data loggers to common PC / PLC |
| Sensor Excitation | 24 VDC Sensor Excitation Output |
| Operating Power | 230V AC |
| Additional Feature | Optional GSM/GPRS for SMS and Email alarms |
| Application Areas | All type of process plants like - Oil & Gas, Power, Iron & Steel, Automotive, Water & Waste, Food & Pharmaceutical, Chemical & cement Industries, Paper Industry, Dairy & food industries, Horticulture & agriculture, Vulcanization, Blood Banks, cold storage etc. |
Key Features
- 8 / 16 channel Universal Input
- Bright LED Display for Parameter Value, Set PointValue and Channel Number.
- Real time data - logging any Process Parameter.
- Sufficient internal memory for your local storage needs ~ 60,000 samples
- Serial RS232 or RS 485 Modbus RTU interface for PC / PLCcommunication ( Optional )
- Flexible and selectable logging mode and logging interval.
- USB port for Easy Data retrieval.
- Potential free Relay output for Alarms.
Application Areas
- Oil & Gas
- Power, Iron & Steel
- Automotive, Water & Waste
- Food & Pharmaceutical
- Chemical & cement Industries
- Paper Industry
- Dairy & food industries
- Horticulture & agriculture
- Vulcanization
- Blood Banks
- cold storage etc.
